ETERNAL WIRING MAGNETIC ENGINE (SHMD)
Dudyshev Valery Dmitrievich, Russia, Samara
Samara Technical University

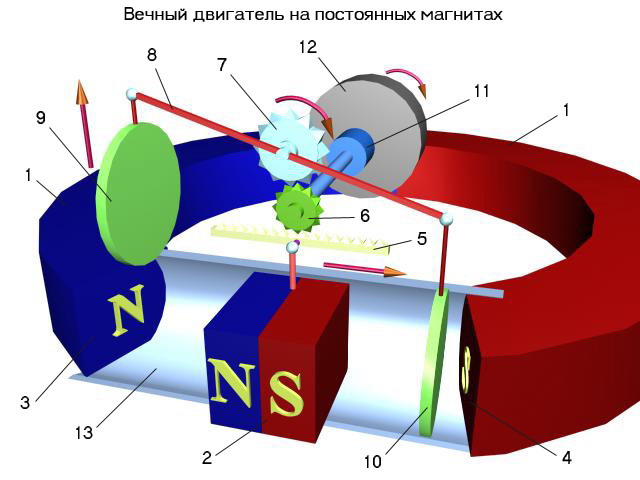

It is shown in the figure. Its design consists of two permanent magnets, for example a fixed arc magnet with a gap and a movable strip magnet inserted into this gap into the guide rails and the swing swings with two shutters made in the form of two magnetic screens. Magnetic screens can be made in different ways (for example, using diamagnetic materials or hole curtains made of ferromagnets of a certain thickness and configuration, etc.). They provide zero force interaction of the same magnetic poles of these magnets when they are covered by a screen curtain at the extreme points of the magnetic strip Pole with the same poles of an arc magnet. When the screening shutter is output, the magnets are repelled by opposite poles, and thus provide mechanical oscillations of the strip magnet and the movement of the swing with the magnetic screens through the simplest mechanics in general without the supply of mechanical energy from outside.
print version
Author: Valery Dudyshev
PS The material is protected.
Date of publication 30.09.2004гг
