Russian Federation Patent RU2215100
METHOD FOR PRODUCING roof panels with solar panels
Name of the inventor: Kulakov VA .; Lavrenov AN .; Lizunov AA .; Smirnov AV
The name of the patentee: Federal State Unitary Enterprise "Scientific-Production Association of mechanical engineering"
Address for correspondence: 143966, Moscow region, Reutov Str.. Gagarin, 33, Federal State Unitary Enterprise "NPO Machine Building"
Starting date of the patent: 2001.10.24
The invention relates to the field of construction, in particular to the solar panels. Technical result of the invention is to improve the strength and durability of the solar battery. A solar battery placed on the support base and embedded above the photoelectric converters sealing composition curable with light transmittance level of at least 30%. The configuration of the support base at the site of installation of the solar cell is performed as a flat pad. In this flat area to accommodate solar utaplivajut either in the body of the support base or on the rim enclose the perimeter. In addition, over the solar cell glass plate or glazing can be placed by the fall of the radiant flux.
DESCRIPTION OF THE INVENTION
The invention relates to the technical facilities, including solar panels (PSB), such as roofing and wall blocks (construction, architecture), an autonomous solar power (life support systems, vehicles, signaling devices), etc.
Known designs of solar cells (SC) used in technical devices and architecture (see, for example, A.S.Popolov "Sunny trucks" M. Transport, 1996; A.E.Gutnov "World Architecture" - M... : The Young Guard, 1985, p.58). Thus DPM usually constitute an independent constructive mechanically connectable to the base plate (housing dedicated console, etc.) products.
The closest analogue of the proposed technical solutions is a way of fixing the DPM to the support base, presented in a monograph G.Raushenbaha "Handbook on designing solar cells." - M .: Energoatomisdat, 1983, p.178, Figure 3.41. Solar cells are placed on a prototype of the curved surface of the support base by using an adhesive compound. This line (electrical cables) from the current collection of photovoltaic cells (solar cells), usually located in protected gargrot (boxes), including on the outer surface of the support base and not affect the strength properties of the compounds' support base - FEP (Sa) ".
The disadvantages analogs include clear underutilization of the support base for the power of discharge relatively fragile PSB, which hinders widespread use of environmentally attractive and commercially available in the regions of the Security Council with difficult climatic conditions.
The aim of the invention is a method for manufacturing roof panels with SB-integrated constructive support base products (panel unit device) that provides strength and durability of bringing the assembly to a level of the primary product material base carrier.
This object is achieved by the fact that the Security Council is placed (mounted) on the support base and fill above the FEP sealing the curable composition with a light transmittance of not less than 30% (the highest level of disposable light emission in the Council working range).
To increase the utilization factor of the radiant light flux configuration (surface) of the support base at the site of installation Sa operate as a flat pad (aka: Sa is set on a flat platform, made in the carrier base). At the same time - depending on the adopted design-layout scheme products - flat area (site) to accommodate SC utaplivajut or in the body of the support base, or enclose the perimeter rim (up to fill level of the sealant composition).
In addition, over the Security Council by the fall of the radiant flux can be placed a glass plate or glazed (to minimize radiation exposure FEP).
 |
 |
 |
 |
 |
 |
1 shows a circuit constructive variant section roofing panels Sa, manufactured according to the proposed technical solution. notations:
1 - support base;
2 - photoelectric converter (solar panel);
3 - curable sealant composition.
Figure 2 is a sectional view of the roof panels on the base Sa (or c advantageous application) polysilicon. There poz.1-3 to conform to Figure 1,
4 - temperature compensator (optional).

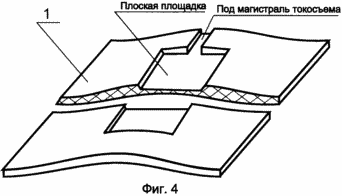

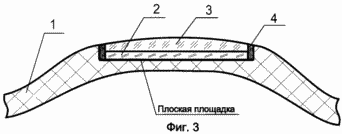

3, the panel 4 is a sectional perspective view of the carrier and flat base area recessed in its body (designation analogous to those in Figure 2).

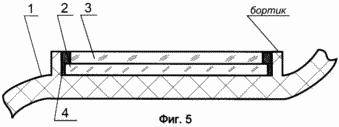

FIG. 5 shows a variant of the cross section of the roof panel with the flat Sat platform enclosed by perimeter rim (refer to Figure 2 are similar to those adopted).
Figure 6 is a section of the roof panel with the Security Council and the protective glass plate (glazing). Poz.1-4 similar accepted 2,
5 - glass plate (glazed).
For the method according to the proposed technical solution is characterized by the following features. In the simplest case (see FIG. 1) FEP (SB member) item 2 is sealed on the support based on position 1 by a curable composition poses. 3 (in this case it is assumed that the operating conditions and / or parameters of temperature expansion elements Pos. 1, 2 and 3 allow the nominal design operation in a predetermined range of the product life cycle).
Depending on the design-layout features of the devices (component elements) realizing the proposed solution (for example, the use of mono- or polycrystalline structures FEP, extensibility main expansion coefficients of construction materials, the presence or absence of thermal compensators pos. 4, etc.) are possible various options for roofing panels Security - see Figures 1-6..
Thus, in FIG. 2 shows a variant of the roof panel with the placement of the Security Council poses. 2 on the curved surface position 1. In the case of a mismatch, thermal expansion of the main structural elements of the position 1, 2, 3, allowed the introduction of thermal compensators pos.4.
In other embodiments, the support base position 1 is finished so that on the convex (and / or concave and / or side) of the outer surface to form a flat area (see Figures 3, 4, 5.) - Of the size of selected technical conditions -economic feasibility of construction-assembly scheme considering the properties of materials and thicknesses of real solar cells (SC), the level of transmission of the radiant flux of the sealing composition, the strength properties of the modified base, maintainability, etc.
From single standardized PEC formed Sat given geometry collected SB item 2 is placed on the base plate (roof panel) Pos. 1, the current collection pipe with SAT output, for example, via a dedicated slot or through-hole for a specialized circuit carrier base position 1. Then said the assembly is filled (usually to the top surface of the base or skirting the fence - see 3, 5.) Sealing the curable composition pos.3 providing SB pos.2 protection against adverse external influences (rain, snow, hail, dust, dirt, etc.).
Deemed advisable - taking into account technical and economic criteria for "cost-effective" for current and future technologies - set the level of transmission of the sealing composition of light on PSB not less than 30% of the nominal value (received "clean" SB with similar orientation) within range of the solar batteries.
It should be noted that the proposed technical solution durability operation (work) PSB significantly increased (as FEP degradation under the influence of radiation and other adverse factors slowing relatively strong due to the presence of the protective screen which performs the role sealant composition).
In the case of the maximum tightening requirements on the radiation resistance of the Security Council further protection can be FEP plate glass (glazing) item 5 - See, for example, 6..
Application in the framework of the proposed method with similar gradients of thermal expansion of durable materials will create long-term roofing panels (supporting konstruktivy) having a qualitatively new consumer properties - more capacity for the generation of electrical current for domestic and technological needs (which every year becomes more and more economically and environmentally attractive).
CLAIM
1. A method of manufacturing a roofing panel with a solar battery, wherein the solar battery is mounted on a flat area formed in the supporting base, and pour the above photovoltaic solar cell sealing composition curable with light transmittance level of at least 30% in the range of the solar battery .
2. A method of manufacturing a roofing panel with a solar battery according to claim 1, characterized in that the solar cell is placed on a glass plate or glazed.
