INVENTION
Russian Federation Patent RU2010992
HYDRAULIC WHEEL BEARING HYDRO with blades
Name of the inventor: Viktor Abramovich Abramov
The name of the patentee: Abramov Viktor Abramovich
Address for correspondence:
Starting date of the patent: 1989.06.21
Use: in the hydropower construction. The inventive wheel is placed under water, equipped with a current generator and gearbox located above the water surface. One edge of the blade is on the inside of the generator wheel, the other - on the outside, the blade length of not more than the radius of the wheel. The wheel is provided with small blades attached to the main angle to it, and found in piles or bridge supports, and fixed straightener shield in front of him.
DESCRIPTION OF THE INVENTION
The invention relates to hydropower construction and hydropower and is designed to generate electricity at work (neperemerzayuschih) rivers without dams, t. E. Damless environmentally friendly hydropower. In the future, nuclear power and replace free the drenched earth dam hydroelectric power station.
It is known that the pressure created by the concentration of hydropower plants on the river falling the site used a dam or diversion or dam and diversion together.
The construction of dams and large areas of the Gulf of land for existing hydropower plants has a significant drawback, it is very time-consuming and entails the loss of large areas of land. The proposed technical solution, it eliminates.
The proposed hydroelectric hydraulic wheel bearing is different from the well-known fact that one edge of the blade wheel is on the inner generator, and another - on the outside, the radius of which may be different than or equal to the radius of the wheel; wherein the wheel is further provided with small blades attached to the basic angle to it (thereby increasing the area of the working part gidrokolesa) and wheel set or axle at the bearing piles and straightener shield attached to it. As a result, increased power and efficiency.
The aim of the invention is to provide a hydraulic wheel, which will ensure efficient operation of hydropower stations on the base of all workers (neperemerzayuschih) rivers.
The objective is achieved by using power flow (movement) of water using gidrokolesa 1 with its small core 3 and 4 by means of the straightener vanes shield 2.
 |
 |

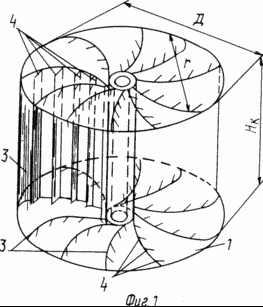

FIG. 1 shows a wheel hydraulic, general view; FIG. 2 - supporting hydroelectric scheme - it joined.
In OGES gidrokoleso installed on individual piles 5 completely under water. The link between gidrokolesom 1 and 5 individual pile must be clutch 13 (in Vol. H. And supporting-roller bearing). To be effective, it joined straightener need to install the shield 2 from the water flow in the river 6. rectifiable shield will act as a local dam, narrowing the channel of the river, resulting in local release of water from the shield 7 on gidrokoleso will increase the flow rate, and as a result, and power and efficiency.
So, the higher the speed (flow) of water flow in the river and the larger the working level with the water in the river (see. FIG. 2), the stronger will be the support hydroelectric (OGES).
The rate of flow of water in the river is easily determined even in place of reset it with the straightener shield.
with - the working level of the river - it is the height of the impeller to -H;
and - the size equal to the maximum freezing of water in the river, plus 10-15% of (a + 0,15a);
b - the size received from 0.2 to 0.5 m depending on the species or material constituting the bottom of the river;
h - the difference between the maximum water level in the river (flood period) and a minimum water level in the river, plus 10%.
(H + 0,1 h).

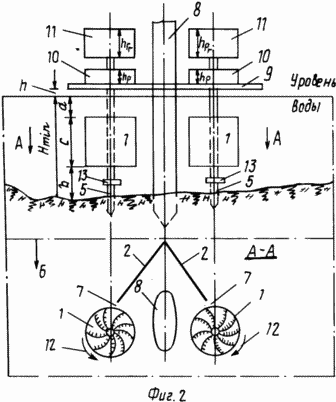

.. The concept OGES for all, t h and freezing rivers, is as follows (refer to Figure 2..) To the pile 8 or bridge support 8 there is a mounting flange 9, where going underwater and flooded the part OGES (on both sides piles or supports and possible with one hand).
The underwater part - a hydraulic wheel 1, the height of which is equal to - the working level of the river, ie H k = C,..
K = N N min - (a + b), where N min - minimum water level in the river.
The diameter (D) of the hydraulic can be taken from the river features.
Surface part - a gearbox 10 (or something similar) needed to produce a certain generator current frequency and current alternator 11, which are mounted on the shelf (or other unit.).
To gidrokoleso 1 (.. See Figure 2), effectively and in a direction rotated 12, it is necessary to adjustment:
H u = H min + h + h p + hGT, where h p - the height of the reducer;
GT h - the height of the current generator installed and secured to the support on the part of the river flow straightener panel 2 (see Figure 2 -.. section AA), which can be made of metal, concrete, or other material.. It is necessary to shield the wings straightener directed stream of water directly on the hydraulic wheel blades. As a result, it will rotate and then through the gearbox - a current generator, which will generate electricity consumer desired. Rectifiable shield can be done straight or shaped as indicated in Fig. 2. (56) United States Patent N 1350187, cl. F 03 B 7/00, publ. 1920.
CLAIM
HYDRAULIC WHEEL SUPPORT HYDRO with blades placed under water, equipped with a current generator and gearbox located above the water surface, characterized in that one edge of the wheel vane lies on its inner generatrix, and the other - on the outside, and the blade length is less than the wheel radius , the latter is further provided with small blades attached to the main angle to them, and the wheel is set in piles or bridge supports and fixed straightener shield in front of him.
print version
Publication date 11.01.2007gg
