INVENTION
Russian Federation Patent RU2019918
Receiving device, transfer and stockpiling of atmospheric electricity
Name of the inventor: Kovalevsky Vladimir [BY]
The name of the patentee: Kovalevsky Vladimir [BY]
Address for correspondence:
Starting date of the patent: 1993.01.18
Usage: area energy from the atmosphere in the form of lightning current. The inventive lightning arrester formed with a diameter of at least 12 mm from an alloy based on cobalt and titanium, and not more than 1.3 m in height, and the conductive fixed on the support, has a length of 15.7 - 15.9 m.
DESCRIPTION OF THE INVENTION
The invention relates to the use of atmospheric electricity.
A known device for the use of atmospheric electricity, which is a prototype, includes an antenna, a capacitor, a transformer and arrester.
The disadvantage of this device for use of atmospheric electricity is only getting bits and vibration due to use of a capacitor as elektronakopitelya electricity supply said device is very low and there are no active reception, transfer and accumulation of atmospheric electricity.
The proposed reception device, transmission and storage of atmospheric electricity receiver comprises atmospheric electricity, which is a rod of aluminum alloy metal, nickel, copper, cobalt, titanium and a diameter of 12 mm and a length of not more than 1.3 m, the outside electricity collector height 15,7- 15.9 m.
The diameter of the current collector and the collector of atmospheric electricity determined empirically, and their length is determined on the basis of the wind load on the territory of the Republic of Belarus.
The collector of atmospheric electricity is attached to concrete pillars 3 or wooden support pre-welded at its upper end to the lower end of the 4 receiver of atmospheric electricity.
When using wooden poles for mounting the collector of atmospheric electricity Bearing the above previously prior to installation of the device is impregnated with an antiseptic, and reinforced concrete console is used for mounting said support.
The collector is connected to the atmospheric electricity elektronakopitelem having four hard rubber base.
The proposed device receive, transfer and accumulation of atmospheric electricity is actively taken, transmitted and accumulated atmospheric electricity.

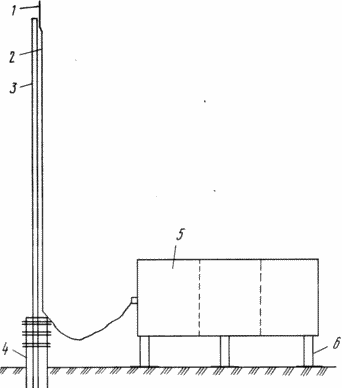

The figure shows the reception device, transmission and storage of atmospheric electricity.
 |
It consists of a receiver 1 atmospheric electricity representing metal rod of aluminum alloy, nickel, copper, cobalt, titanium and a diameter of 12 mm and a height of not more than 1.3 m, the outside electricity collector 2 made of a material of atmospheric electricity receiver 15 and the height , 7-15,9 m. The choice of material of the susceptor (cobalt-based alloy and titanium) provides an active reception electrodischarges atmospheric electricity. The collector of atmospheric electricity is attached to wooden or concrete pillars support 3, pre-collector was welded at its upper end to the lower end of the receiver of atmospheric electricity. When using wooden poles for mounting atmospheric electricity collector support the above previously prior to installation of the device is impregnated with an antiseptic, and the installation of said support is used reinforced concrete consoles 4. The collector is connected to the atmospheric electricity elektronakopitelem 5 having four ebony stand 6. Reception apparatus, the transmission and accumulation of atmospheric electricity works as follows. |
Receiver 1 atmospheric electricity, which is a rod of aluminum alloy metal, nickel, copper, cobalt, titanium and a diameter of at least 12 mm and not more than 1.3 m in height and actively takes lightning electric discharge and transmits them to the two electrodes of atmospheric electricity. Then atmospheric electricity collector made of a material of atmospheric electricity height 15,7-15,9 m receiver connected at its upper end to the lower end of atmospheric electricity welding receiver transmits the lightning current elektronakopitel 5.
CLAIM
Receiving device, transfer and stockpiling of atmospheric electricity, including current collector of atmospheric electricity in the form of a rod connected to a current collector attached to the carrier support and connected to the drive and the load, wherein the current collector rod is a minimum diameter of 12 mm and a height of not more than 1, 3 m from an alloy based on cobalt and titanium, and the height of the collector is made of 15.7 - 15.9 m.
print version
Publication date 15.02.2007gg
