INVENTION
Russian Federation Patent RU2279018

Vortex heat HYDRAULIC

Name of the inventor: Britvin Tolstoy (RU)
The name of the patentee: Britvin Tolstoy (RU)
Address for correspondence: 111673, Moscow, p / 13, LN Britvina
Starting date of the patent: 2004.11.09

The invention relates to heat engineering, in particularly to heating devices working on a principle of heating a liquid due to occur in it and vortex cavitation processes and can be used to heat and chemical reactors and intensification of chemical reactors. The essence of the invention is that vortex heat-generator of the hydraulic system comprising a drive pump fluid flow source, the output of which communicates with a nozzle arranged in circumferential field of greater diameter cone nozzle device, at least one output channel which through an external hydraulic communication with the suction duct pumping source fluid flow, a pumping source liquid flow is made in the form of an impeller type wheel of a centrifugal pump with an effective disc mounted in a nozzle unit in the zone of its greatest diameter, the output section of the impeller is blocked rim to form the peripheral annular chamber of high pressure inside the wheel, and nozzle is made in at least one end wall of the annular chamber on wheels in its periphery a dispersed diameter of the peripheral annular chamber throttling feedthrough channels. To enhance the suction capability of the impeller when operating on a two-phase fluid provided throttling spray channels communicating the inner cavity of the nozzle unit to the input portion bladed impeller system and to increase energy efficiency in the periphery of the wheel on its diameter, the smaller diameter of the nozzle arrangement are set additional protrusions and acoustic resonators. In general, the signs mentioned above and improve energy weight and size characteristics of the heat generator allows extensive use of commercially available impellers, parts and components typical of centrifugal pumps.

DESCRIPTION OF THE INVENTION

The invention relates mainly to heat engineering, in particularly to heating devices working on a principle of heating a liquid due to occur in it vortex and cavitational processes but also can be used to heat chemical reactors or mixing, warming up and intensification of chemical reactions between the liquid components that pass through heat source in industrial processes and hydraulic systems for various purposes.

Known heat generator comprising a swirl chamber communicating with the pump drive and provided with additional liquid circulation circuit through the swirl chamber [1].

The disadvantage of this device is its bulkiness and the need for an external pump and piping for its connection with the pump.

Known and the heat source with the case highly conical jet apparatus providing a tangential inlet of fluid at an angle fixed in the housing through a nozzle communicating with a pump driven by the engine output. Taper nozzle assembly is positioned in it in minimum on section end of the vent passage communicated with the hydraulic system through a suction port of the pump [2].

Disadvantages of this device are similar shortcomings devices [1]. Having a single nozzle, feeding the liquid into a conical nozzle apparatus restricts possible power fluid energy conversion into heat because of the inefficiency of the organization of a vortex motion of a liquid in a conical apparatus at the entry into it of a large diameter jet, but also the energy loss in the fluid in the working process of the pump and piping connecting the pump to the nozzle. Having a single nozzle and restrict the possibility of varying the angle and technically difficult to obtain a high fluid flow velocity of circulation in the inlet section of the conical device.

The invention aims to improve the energy characteristics of both the conversion of mechanical energy to heat engine drive, and mass-dimensional characteristics of the heat generator at the same time simplifying the design of the heat generator and cost price of its manufacture as a whole.

This goal is achieved by the fact that:

- Vortex heat hydrosystem, containing drive pump fluid flow source, the output of which communicates with a nozzle arranged in circumferential field of greater diameter cone nozzle device, at least one output channel which through an external hydraulic communication with the suction pump fluid stream source channel, in which pumping fluid flow source is configured as an impeller type wheel of a centrifugal pump with an effective disc mounted in a nozzle unit in the zone of its greatest diameter, the output section of the impeller is blocked rim forming circumferential ring high pressure chamber inside the wheel and the nozzle is made in at least one end wall of the annular chamber on wheels in its periphery a dispersed diameter of the peripheral annular chamber throttling feedthrough channels;

- Impeller inlet section is taken from the location of the drive shaft of the wheel;

- Impeller inlet section is taken from the internal cavity of the nozzle apparatus;

- Nozzle devices are arranged on both end faces of the impeller;

- Output channel of nozzle unit is made in small diameter end thereof;

- Output channel of nozzle unit is made in the area between the rim of the impeller and the end of small diameter nozzle apparatus;

- An internal conical cavity of the nozzle unit adjacent to its axis, hydraulically communicated with the inlet section of the impeller through at least one additional throttling channel;

- Additional at least one throttling bore is coaxially the axis of the nozzle apparatus and in conjunction with the suction channel forms the mixing chamber flows coming from the outside of the hydraulic system on the suction port, and internal circulation flow nozzle device supplied through said throttle channel;

- The inner cavity of the nozzle device in communication with the impeller facing additional locations in the area connecting the blade wheels for cover spray throttling channels

- A small-diameter nozzle unit area has at least one an acoustic resonator;

- A small-diameter nozzle unit electrode area is set for communication with the electric generator of electromagnetic action on a fluid flow, such as a high voltage pulse generator;

- Dispersed the peripheral diameter of the impeller an annular chamber nozzle is united in a common ring shaped slit, for example, a diffuser-type;

- Dispersed by the impeller diameter peripheral annular nozzle chamber is designed as a profiled throttling apertures or slots directing liquid flow relative to the circumferential velocity vector at an angle of 90 ° ± where It lies in the range of + 80 ° ...- 30 °, starting from the condition of maximum efficiency and ensure the necessary pressure between the outlet duct and the suction nozzle unit impeller channel;

- On the periphery of the impeller are made diverting fluid flow projections and acoustic resonators;

- At least one impeller disc top size in a zone adjacent to the axis of the nozzle unit is made more bladed system of interaction with the internal cavity recirculation flow nozzle apparatus;

- A nozzle device provided with at least two suction and two and two outputs for external regulation and hydraulic fluid recirculation flow through the inner cavity of the nozzle apparatus.

Vortex heat HYDRAULIC Vortex heat HYDRAULIC

1 and 2 are schematic diagrams of the apparatus

Vortex heat HYDRAULIC

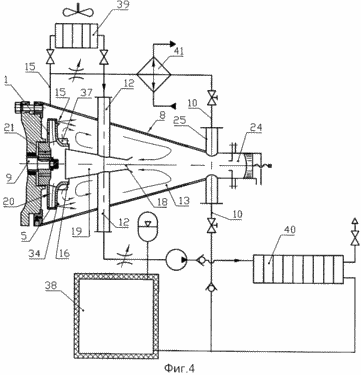

3 and 4 - technical solutions embodiment examples external hydraulic

5 and 6 are embodiments of the resonators and pathogens molecular vibrations
fluid in the device

7 ... 9 - working embodiments of pump body with various types of nozzles

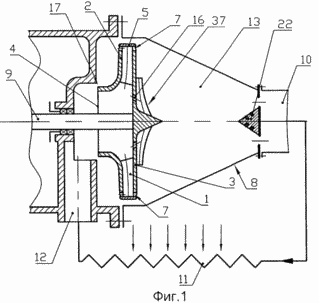

Vortex heat-generator, see FIG. 1, consists mainly of an impeller 1 of the closed type impeller centrifugal pump with coating disks 2 and 3. The disk 2 is executed by the input section 4 of the impeller. Output section overlapped one wheel rim 5, which, together with the disk 2 and the coating 3 forms an inner circumferential annular pressure chamber 6. On the front wall of the chamber 6 at its periphery in the form of a nozzle carried dispersed on the peripheral diameter of the chamber 6 through passage throttling channels 7. Impeller 1 as a source of energy of fluid flow is set into the cone-shaped nozzle unit 8 in the zone of its greatest diameter shaft and communicated to a drive motor 9 ( engine in Figure 1 are not shown). Output channel 10 of the nozzle unit 8 is located in its small-diameter end, communicates with external hydraulic system 11, heat removal, the output of which is communicated with the suction port 12 of the nozzle unit 8, a supply fluid to the inlet cross-section 4 of the impeller 1.

In this embodiment the inlet section 4 of the impeller 1 is satisfied by the arrangement of the drive shaft 9.

2, 3 and 4 are embodiments in which the input section 4 of the impeller 1 positioned on the inner cavity 13 of the nozzle unit 8.

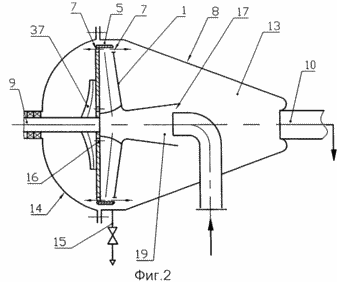

2 is provided with an additional heat source tapered nozzle assembly 14 disposed oppositely unit 8 on the other end side of the impeller 1. In this case nozzles 7 can be executed with two end faces of the impeller of the pressure chamber on June 1.

The output channel 10 nozzle device for increasing the pressure between it and the suction channel 12 may be performed in the nozzle unit 8 between the location area of ​​the rim of the impeller arrangement 5 and the end of the nozzle 1, a small diameter device. See, for example, 2, 3 and 4, showing additional output channels 15 for external hydraulic complex structure, such as providing heat, hot water and the presence of the hot source, such as pressurized water from the primary circuit internal nozzle device - the cavity 13.

To ensure the flow of internal circulation between the impeller and the interior cavity 13 of the nozzle unit 8 inside cavity 13 adjacent to the nozzle axis of the apparatus, it communicates with the input section 4, the wheel 1 via at least one additional throttling passage 16 and / or 17. See FIG. 2a and 17 and 18, see Fig. 3 and 4.

Additional channels 17 and 18, formed coaxially axis of the nozzle unit 8 form together with the suction channel 19, mixing chamber and the recirculation flow stream coming from an external heat source to the hydraulic system 11 (Figures 2 and 4 show examples of the technical solutions of the hydraulic system of a plurality of options) .

The internal cavity 13 of the nozzle unit 8 in the embodiment can be communicated with the impeller 1 additional opening into the blade area of ​​20, additional spray throttling channels 21, which reduces the probability of failure of the mode wheel 1 in the high temperature zone where the working fluid in the wheel input is a two-phase (vapor-liquid) structure.

To optimize the performance of small diameter in the zone of the nozzle unit 8 can be installed at least one acoustic resonator, for example, made in the form and provided with a vortex generating chambers washer grooves 22 sm. 3, the resonating capacitance 23 or variable volume or tubular taps 25 communicated with output channels 10 device 8, see FIG. 4. 5 and 6 show additional embodiments of the resonators 26 and 27 are mounted (like cavity 24 in Figure 4) towards the impingement flow and the stream for reflecting unit 8 to the rotor axis 1, that intensifies process of wave impact on the fluid dynamic.

In order to further enhance the dynamic resonant action on a fluid in a zone of small diameter nozzle unit 8 mounted electrode 28, the electric generator 29 communicates with the electromagnetic influence on the flow of fluid, such as a high voltage pulse generator and an adjustable frequency.

Described vortex heat-generator ensures an effective work at different types of structural embodiment of distributed from the peripheral diameter of the annular chamber 6, wheel 1 nozzle 7, executed on at least one end wall of the chamber 6. In the simplest embodiment, the nozzle 7 satisfied combined into a common ring shaped gap 30, for example, diffuser type, as shown in Figure 7, in the form of a flat slit, the slit type nozzle or a venturi confuser. Such nozzle technology and easy to manufacture, minimize external vibration activity TEPLOAGREGAT but often optimal for implementing the limited tasks for the application of the heat generator. The optimal number of tasks, such as decontamination liquid, ensuring intensive mixing of liquids and solids for intensification of chemical processes, problem solving cleaning the outside of the hydraulic system and it contains details and and and tasks improve reliability when working in contaminated liquids preferably solved when the nozzle in the form of profiled throttling apertures 31, channels 32 or slots 33 cm. 8 and 9, fluid flow guides W relative to the circumferential velocity vector U D 90 ° + where It lies in the range of + 80 ° ...- 30 °, starting from the condition of maximum efficiency and ensure the necessary pressure between the outlet passage 10 of the nozzle unit 12 and the suction port of the impeller 1.

In embodiments, the periphery of the impeller are made of liquid flow deflecting projections 34 and additional acoustic resonators in a vortex generating chamber 35 or slots 36 cm. 7 and 8, directly affecting fluid flow W Exiting the nozzle in the form of slits 30, holes 31, channels 32 or slots 33. In the simplest case, = 0. at > 0 increases the tangential component of the flow velocity entering the nozzle unit 8 and thereby increasing the speed of fluid in the internal cavity 13 of the nozzle apparatus, see. The velocity diagram in Figure 9. at <0, increases the pressure between the channels 10 and 12. In general, the change in the It allows you to adjust the thermal and hydraulic performance parameters of the heat generator and hydraulic system.

For additional force action between the impeller 1 and the circulation flow in the cavity 13 of the nozzle unit 8 to at least one top size disk impeller made additional blade 37 for transmission to the wheel torque by the braking action of the rotating cavity 13, a recycle liquid stream and improve the most vortex heat energy characteristics generally refer to FIG. 1, 4.

For the convenience of connecting the various subsystems of the heat generator to the external hydraulic nozzle unit may be provided with two or more suction 12 and output 10, 15 channels.

HEAT WORKS AS FOLLOWS

After connecting channels 10 and 12 heat-generator to an external hydraulic system 11, see FIG. 1, filling its coolant, for example water, and remove air from the cavity 13 and the hydraulic drive motor 9 rotates the shaft of the impeller 1. This pressure arises in the chamber 6 and 7 through a nozzle in a nozzle unit 8 with high circumferential speed enters the liquid moving in the direction of the minimum diameter of the nozzle apparatus. One portion of the liquid flow passes through the channel 10 to the hydraulic system 11 and then returns to the suction passage 12 and further into the impeller 1, and another part flow having an increased angular velocity, moving on the nozzle unit axis to the wheel 1 toward the circumferential flow chamber 13 and channels 16 through the throttling (21) is fed into the input portion 1 of the wheel, creating an internal liquid recycle stream in the chamber 13. this causes the continuous nature of the motion in the fluid heat dissipation due to cavitation and vortex processes in it, which is intensified by the action of the resonators 24 26, 27, 35, causing a wave of liquid molecules vibrational excitation, and a vortex generating projections 34 at the impeller 1, reducing the pressure at the nozzle 7, executed in the embodiments shown in Figures 1, 2, 4, 7 ... 9. The intensity of the heat is given the task and the relationship between flow rate of internal circulation in the heat exchanger and the circulation flow through an external hydraulic system that provides job hydraulic resistance of the circuits known in the hydraulic means. The intensity of the heat. It is possible to connect the boiler hydraulic systems for various applications and structures. Mixing chamber 19 and passages 16 and 21 increase the suction capacity of the wheel when running on a two-phase fluid.

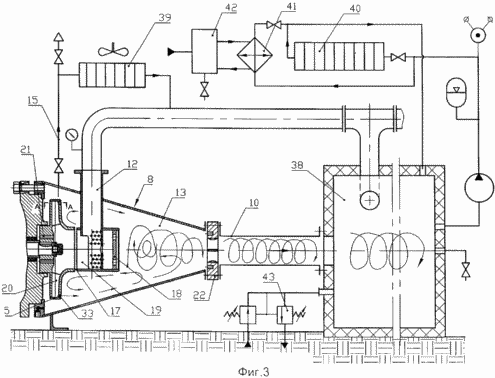

For example, in Figure 3 of the nozzle unit 8 through the resonator 22 and the axial duct 10 communicates with boiler 38 along its axis, that as a whole maintains a vortex motion of a fluid on a large external hydraulic station; to the high-pressure outlet duct 15 is connected a heat exchanger 39 of the air heating. By boiler 38 connected to the heating system 40 and through the additional heat exchanger 41 connected to the device 42. At the same time hot water to the boiler 38 can be connected to several heat generators for backup purposes and heat flow control applied in the hydraulic system.

In the presence of an electrical energy source 29 AC or DC 29 additional adjustable heating liquid is carried out by passing an electric current through the central ionized fluid circulation flow in the core cavity 13 of the nozzle unit 8. When carrying out a high-frequency generator source 29 is provided by a high-frequency effects on fluid flow in the cavity 13, thereby increasing energy efficiency. The hydraulic system must have a permanent gas separator gas outlet (air) from the system, and a device for stabilization of pressure, see., For example, block 43 with a reducer and safety valves in Figure 3.

If you have extra blade system 37 and / or the performance of the channel 16, directly to the supply liquid (without losing its circulation) to the input of the main blade impeller system, see FIG. 4, carried out partial discharge at the time of the drive shaft 9, which promotes energy efficiency and the reliability of the heat source.

Described vortex heat-generator has a simple construction and can be performed on the basis of commercially available working bodies, housing elements and the support units of centrifugal pumps, which reduces manufacturing costs and allows heat generators for various power in monoblock highly compact implementation and embodiments of the frame design with shafts compound driving motor and the impeller shaft by means known in the art gidromashinostroitelnoy type couplings.

INFORMATION SOURCES

1. Potapov YS The heat generator and a device for heating a liquid. RF Patent 2045715, 1995, Bull. №28.

2. VP Kotelnikov The heat source. RF Patent 2161289, 2000

CLAIM

Vortex heat generator 1. The hydraulic system comprising a fluid flow pump drive source, the output of which communicates with a nozzle arranged in circumferential field of greater diameter cone nozzle device, at least one outlet channel through which an external hydraulic pump communicates with a suction source fluid flow channel, wherein the pump fluid flow source is designed as an impeller type wheel of a centrifugal pump with an effective disc mounted in a nozzle unit in the zone of its greatest diameter, the output section of the impeller is blocked rim forming circumferential ring high pressure chamber inside the wheel and nozzle carried out in at least one end wall of the annular chamber on wheels in its periphery a dispersed diameter of the peripheral annular chamber throttling feedthrough channels.

2. The vortex heat-generator of hydraulic system according to claim 1, characterized in that the impeller inlet section is taken from the drive shaft of the wheel arrangement.

3. The vortex heat-generator of the hydraulic system according to claim 1, characterized in that the impeller inlet section is taken from the internal cavity of the nozzle apparatus.

4. Vortex heat generator hydraulic system according to claim 1, characterized in that the nozzle devices are arranged on both end sides of the impeller.

5. The vortex heat-generator of the hydraulic system according to claim 1, characterized in that the nozzle device output channel formed in its small diameter end.

6. The vortex heat-generator of the hydraulic system according to claim 1, characterized in that the nozzle unit is configured to output a channel area between the rim of the impeller and the end of the small diameter nozzle unit.

7. The vortex heat-generator of the hydraulic system according to claim 1, characterized in that the inner cavity of the conical nozzle unit adjacent to its axis, hydraulically communicated with the inlet section of the impeller through at least one additional throttle channel.

8. The vortex heat-generator of the hydraulic system according to any of claims 3 to 7, characterized in that the further, at least one throttle duct is formed coaxially and the axis of the nozzle unit together with the suction channel forms the mixing chamber flows coming from the hydraulic system on the external suction port, and internal circulation flow nozzle device supplied through said throttle channel.

9. Vortex heat generator hydraulic system according to claim 1, characterized in that the interior of the nozzle device in communication with the impeller facing additional locations in the area connecting the blade wheels for cover spray throttling channels.

10. The vortex heat-generator of the hydraulic system according to claim 1, characterized in that the small-diameter nozzle unit area has at least one an acoustic resonator.

11. The vortex heat-generator of the hydraulic system according to claim 1, characterized in that the small-diameter nozzle unit electrode area is set for communication with the electric generator of electromagnetic action on a fluid flow, such as a high voltage pulse generator.

12. The vortex heat-generator of the hydraulic system according to claim 1, characterized in that the dispersed diameter of the peripheral annular impeller chamber nozzle is combined into a common annular slit shaped, for example, the type of the diffuser.

13. The vortex heat-generator of the hydraulic system according to claim 1, characterized in that the dispersed diameter of the peripheral annular chamber of the impeller is designed as a nozzle profiled throttling apertures or slots directing liquid flow relative to the circumferential velocity vector at an angle of 90 ° ± where It lies in the range of +80 ...- 30 °, based on the condition maximum efficiency and the necessary pressure between the outlet channel and the suction nozzle device of the impeller channel.

14. The vortex heat-generator of the hydraulic system according to claim 1, characterized in that on the periphery of the impeller are made protrusions deflecting the liquid flow and acoustic resonator was.

15. The vortex heat-generator of the hydraulic system according to claim 1, characterized in that on at least one impeller disc top size in a zone adjacent to the axis of the nozzle unit is made more bladed system of interaction with the internal recirculation flow nozzle device cavities.

16. The vortex heat-generator of the hydraulic system according to claim 1, characterized in that the nozzle unit is provided with at least two suction and two outputs for external regulation and hydraulic fluid recirculation flow through the inner cavity of the nozzle apparatus.
