INVENTION
Russian Federation Patent RU2227098
METHOD inlaid amber
The applicant's name: Limited Liability Company "Veres" (UA)
Name of the inventor: Sharapov Alexander I. (UA)
The name of the patentee: Limited Liability Company "Veres" (UA)
Address for correspondence:. 40004, Sumy, Work pos, 3, LLC "Veres", Director NG Papus
Starting date of the patent: 2002.06.13
Method for inlay amber quality improvement lies in the fact that prior to placing in the nest amber crumbs are ground to obtain granules with different sizes, and after placement in the socket resulting amber crumbs impregnated epoxy resin and a liquid composition prior to cure is maintained.
DESCRIPTION OF THE INVENTION
The invention relates to the arts and crafts and can be used in the decoration of wood products.
There is a method of inlay amber (. Cm Khvorostov book AS Stamping, inlay, wood carving -. M .: Education, 1977, p.72, 82), which includes cutting the desired configuration in a wooden nest basis in accordance with developed a sketch, placement and fixation of amber in the nest, but also giving the entire set of the total surface. The described method has been taken as a prototype, as the closest on a set of attributes to the claimed.
However, a drawback of the described method is the need for mutual precise fit socket and inserted into his amber that requires a lot of experience and qualifications. This inevitably remains a joint spoiling the big picture, though, and is filled with a tinted adhesive composition that includes wood flour. All this makes the process of performing inlay amber is very complex and non-technological, not giving the possibility of a new formation and establishment of mass production of inlaid wood products.
The invention is based on the task: in the process of inlaying amber by obtaining an intermediate fluid phase based on amber while maintaining its optical and mechanical properties during subsequent solidification ensure simplification of the process of implementation of the inlay and thus provide enhanced creative capabilities and the ability to establish mass production of inlaid wood products.
To solve this problem in the proposed method, comprising cutting the desired configuration of the socket in a wooden base in accordance with the developed sketch amber placement in this slot, but also giving the whole set of overall surface according to the invention prior to placement in the socket amber pulverized to obtain a crumb with granules of different value, and then placing the resulting amber nest chips impregnated with liquid epoxy resin composition before curing and maintained.
Furthermore, before placing amber crumbs insert mounted in the slot of the other material treated beforehand to obtain a desired configuration, after fixing them in place in accordance with the sketch.
In addition, before placing amber crumbs littered the bottom of the nest material reflecting light.
Additionally, succinic and grit, and placed in the insertion slot so that their surface is above the substrate surface.
Milling amber and placing amber crumbs nest allows impregnate amber liquid composition based on an epoxy resin and obtain a flowable phase which due to stress takes the form of sockets any most intricate configurations and after gradual solidification forms a monolithic composition with all properties of amber transparent, color and strength . This causes the elimination of the need precise mutual fit nest and places it amber, and thus simplify the process of implementation of the inlay. In addition, obtaining an intermediate fluid phase resulted in the ability to install in the socket inserts of different shapes and different materials before placing amber crumbs, completely secure and interconnect them into a single monolithic decorative painting. This excludes the intermediate joints between the insert and the fitting operation inserts Welding of metal inserts, etc. It can be laid on the bottom of the nest material that reflects light, before placing amber crumbs after hardening allows fluid phase use optical properties of amber. All this is infinitely expands the creative possibilities and allows you to achieve ever new effects. In addition, it allows for the possibility of establishing mass production of inlaid amber wood products manufacturer with separate constituent elements on the templates to be assembled by means of a fluid phase based on amber.
Brief Description of the drawings:
 |
 |

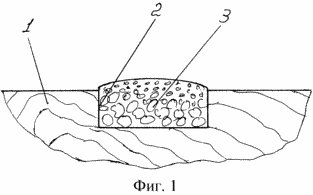

Figure 1 shows a wooden base, designed for inlays, in the section.

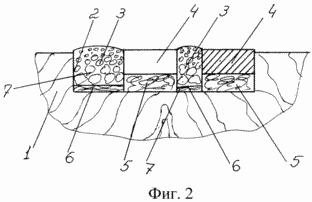

Figure 2 shows a wooden base, designed for inlay amber with inserts of other materials in the section.
Amber inlay method is as follows.
example 1
The wooden base 1 intended for inlay, cut slot 2 according to the developed sketch;
- Amber crumbs are ground to obtain 3 different size granules;
- Put the resulting amber chips 3 in the slot 2 so that it was above the surface of the base 1;
- Amber crumbs 3 were impregnated with a liquid composition based on epoxy resin to form a fluid phase;
- To withstand the curing fluid phase;
- Attached to the entire set of common surface by machining.
example 2
The wooden base 1 intended for inlay, cut slot 2 according to the developed sketch;
- Amber crumbs are ground to obtain granules with three different sizes;
- 4 of the insert is treated with other materials to obtain the desired configuration;
- Pre-attach paste 4 in its place by means of a sketch, respectively, for example, plugs 5 so as to be above the surface of the base 1;
- Carpet the gaps between the inserts 4 reflecting light material 6, such as silver;
- All the voids are filled nests 2 amber crumbs 3 so that it was above the base 1;
- Amber crumbs 3 were impregnated with a liquid composition based on epoxy resin for the fluid phase;
- To withstand the curing fluid phase;
- Attached to the entire set of common surface by machining.
As a result of the use of the claimed technical solution is provided to simplify the process of performing inlay amber, resulting in the expansion of creative possibilities, but also the opportunity to establish mass production of inlaid amber products.
CLAIM
1. A method of inlaying amber, comprising cutting the desired configuration in the slot wooden base designed according to the sketch, the amber seat occupancy, and the entire set and making the total surface, characterized in that, before placing the nest amber crumbs are ground to obtain granules with different value, and then placing the resulting amber nest chips impregnated with liquid epoxy resin composition before curing and maintained.
2. The method of claim 1 inlay, characterized in that before placing the crumb succinic insert mounted in the slot of the other material treated beforehand to obtain a desired configuration, after fixing them in place in accordance with the sketch.
3. The method according to one of inlays to claim 1 or 2, characterized in that the bottom of the socket before placing amber crumbs strew light reflecting material.
4. The method of claim 1, 2 or 3, characterized in that succinic chips and stir in the socket insert so that their surface is above the substrate surface.
print version
Publication date 02.01.2007gg
