INVENTION
Russian Federation Patent RU2079705
The motor converts gravitational energy into mechanical
Name of applicant: Khudoleev Alexey K.
Name of the inventor: Khudoleev Alexey K.
The name of the patentee: Khudoleev Alexey K.
Address for correspondence:
Starting date of the patent: 1993.12.08
Usage: gravitational energy into mechanical converters.
The inventive engine comprises a sealed container in which are placed vertically and pulleys covering their endless belt with hinged gravitational bodies, vertical partition located between the axes of the pulleys and connected to the pipeline capacity with jet pumps, inlet and outlet mouthpieces working bodies.
DESCRIPTION OF THE INVENTION
The invention relates to gravitational energy into mechanical conversion.
Known engine that converts gravitational energy into mechanical load [1]
However, the work cycle is interrupted when lifting, negligible efficiency.
Known engine operating continuously [2]
However, do not use free gravitational energy.
The object of the invention is to reduce energy costs, increase efficiency.
This object is achieved in that the engine comprising a sealed container mounted inside the frame with the placed one above the other horizontal axis pulleys covering their endless closed belt with a bucket operating elements, a longitudinal vertical partition extending between the pulley axles connected to the supply means containers on the bucket working elements of the working fluid and inlet and outlet streams of working fluids, the engine is provided with a turning mechanism with squeezing rollers installed in the upper part of the frame, loads bucket operating elements are designed as levers hinged rotatably in the working position for receiving a working fluid, means of supply and discharge of working bodies is in the form of input, connected to a source of the working fluid feed and outlet pipes installed in the relevant parts of the sealed container.
Another technical effect is to use a folding cargo on flexible rotation programs to increase power.

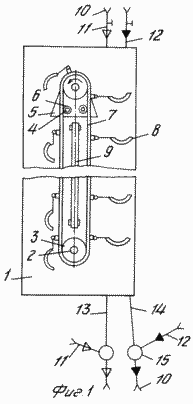

 FIG. 1 is a schematic diagram of the engine |

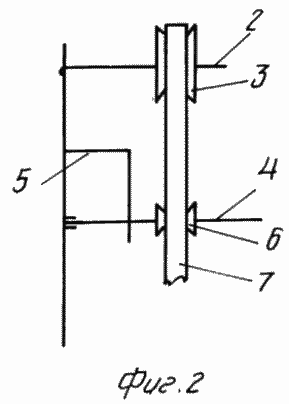

 2 swivel mechanism (left side view) |
The engine comprises a hermetic vessel 1 in which the frame 15 is placed, mounted thereon, one above the other with two horizontal axis pulleys 3 and 7. The belt covered swivel mechanism 5 to nip rollers 6 on the horizontal axis fixing portion 4 at the top of the frame 15 for the branches deviation 7 belt to one side. Pulleys rollers 3 and 6 are connected kinetically belt 7 with closed ends, which with the possibility of deviation to 90 o buckets mounted on hinges 8. longitudinal container 1 partitioned by a vertical partition 9 placed between the two axles, the right upper part is provided with nozzles 11, 12 for connection a power source, and the nozzles 13, 14 for discharging the spent working fluid. The horns 10 and ejector pump 13 to increase the energy efficiency by using air and water flows.
Engine operation begins with the release of brakes on the three pulleys (not shown). This equilibrium is disturbed. The right branch of the belt 7 unfolded buckets 8 under the action of gravity is lowered and the left approaching the tape 7 buckets 8 rises, according to the lever rule according to the formula: The power center of gravity, multiplied by the right shoulder, more power to the center of gravity, multiplied by the left shoulder. Thus there is a clockwise rotation of the load sheave 3 and automatic alternate tilting cargo-pulley 8 to 90 o to the right.
Using the gravitational energy of the engine parts reduces the cost of mechanical energy. And the use of tilting loads on flexible rotation gears increases the engine power.
The engine can work both with liquid and gaseous working stream.
CLAIM
An engine comprising a sealed container mounted inside the frame with the placed one above the other horizontal axes with pulleys covering their endless closed belt with a bucket operating elements, a longitudinal vertical partition extending between the pulley axles connected to the supply means containers to bucket operating elements, the operating supplying body and outlet streams of working fluids, characterized in that it is provided with a rotary mechanism with squeezing rollers installed in the upper part of the frame, bucket operating elements are designed as levers hinged rotatably in the working position for receiving a working fluid feeding means and removal working bodies made in the form of input, connected to a source of the working fluid feed and outlet pipes installed in the relevant parts of the sealed container.
An engine according to claim 1, characterized in that the working medium is in the form of a gaseous substance.
An engine according to claim 1, characterized in that the working medium is in the form of liquid.
