INVENTION
Patent of the Russian Federation RU2150984
Means for moving "Paradox"
Applicant's name: Romanov-Bukin Roman Ivanovich
The name of the inventor: Romanov-Bukin Roman Ivanovich
The name of the patent holder: Romanov-Bukin Roman Ivanovich
Address for correspondence: 125212, Moscow, Leningradskoe shosse 33, ap. 72, Romanov-Bukinu RI
Date of commencement of the patent: 1999.08.13
SUMMARY OF THE INVENTION: The vehicle for movement in the environment comprises a floating base, movable elements and a mechanism for moving elements relative to the base, including a motor and a bar mounted on the base. The stand is mounted on the base with an offset from the center and on it is fixed the plate, in the center of which the electric motor is mounted, at the ends of the plate there are stops, and the bar is mounted on the axis of the motor between the stops with the possibility of contacting the latter. The proposed tool is designed to study non-traditional motion under buoyancy conditions.
DESCRIPTION OF THE INVENTION
The invention relates to floating mechanical means, where, when immersed in a medium (water), the mass acquires zero gravity.
From the state of the art for the proposed machine, a means of the same purpose as disclosed in the patent specification of the USSR, 2031685, Cl. A 63 H 23/10, 1995 . The medium for movement in the medium disclosed in the description of this patent is, on the basis of the essential features, the closest analogue of the proposed invention and comprises a floating base, movable elements and a mechanism for moving elements relative to the base, comprising a motor and a bar mounted on the base.
The field of application of the proposed invention is the study of non-traditional motion under buoyancy conditions, where the main factor in the movement of the mechanism is weightlessness (on water).
Said technical result is achieved in that the means for movement in the medium comprises a floating base, movable elements and a mechanism for moving the elements relative to the base, including a motor and a bar mounted on the base. The stand is mounted on the base with an offset from the center and on it is fixed the plate, in the center of which the electric motor is mounted, at the ends of the plate there are stops, and the bar is mounted on the axis of the motor between the stops with the possibility of contacting the latter.
Power to the electric motor is supplied from the battery or mains.

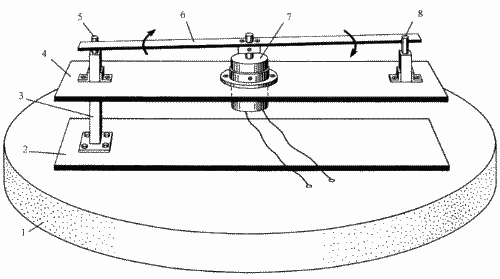

The essence of the invention is explained in the drawing , which shows the general form of the means:
 |
|
DEMONSTRATION AND WORK OF "PARADOX" IS HELD AS FOLLOWED
When the motor 7 is turned on, the rod 6 fixed to the axis of the electric motor 7, with potential rotation of the rotor, rests with its ends in the stops 5 and 8 standing on the plate 4 and the stator fixed to the plate 4. E Its actions represent potential rotation, but its The emphasis is the rack 3, i.e. the second axis on the floating base 1.
The rotor and stator forces made from different axes on the floating base 2 create unidirectional motion to the floating base 2.
In other words, the rotor bar 6 creates a force against the stops 5, 8 is its action in the sphere of the center of mass of the floating base 2, and the stator acts on the radius of the other axis, that is, the post 3, displaced from the center of mass.
Thus, the action of the rotor and stator is made from different axes of rotation, this allows the opposite potential rotations of the rotor and stator and their efforts to create in one direction.
"Paradox" is that the electric motor 7 makes unidirectional movement to the floating base 2 without rotating elements.
CLAIM
A vehicle for moving in an environment comprising a floating base, movable elements mounted on the base and a mechanism for moving the elements relative to the base, including an electric motor and a bar mounted on the base, characterized in that the stand is mounted on the base with a displacement from the center and on which a plate is fixed, In the center of which there is an electric motor, at the ends of the plate there are stops, and the bar is mounted on the axis of the motor between the stops with the possibility of contacting the latter.
