Russian Federation Patent RU2070985
Diesel power plant closed cycle
Remove products combustion in solid form

Name of applicant: Central Research Institute of Shipbuilding
Name of the inventor: Tikhonov AB .; Klasnikov ES
The name of the patentee: Central Research Institute of Shipbuilding
Address for correspondence:
Starting date of the patent:

Use: in marine diesel power plants / DEU / submersibles.

The inventive known DEU containing fuel systems, gas exhaust, oxidant storage and removal of products of combustion, additionally introduced a cryogenic pump, condenser, freezer, pressure reducing device, ice maker, airlock, bilge pump and low-molecular gas storage capacity.

DESCRIPTION OF THE INVENTION

The invention relates to shipbuilding, and more specifically to the ship's diesel power plants (SDEU) submersibles (PA), working in a closed cycle (ZTS), ie without air access.

Known diesel power plant (DEU) working on ZTS with flue overboard evakokompressorom (Diesel installation submersibles. Shipbuilding 1982, N 7, Fig. 1, p.20).

The disadvantages of such a facility is a significant loss of power to the drive evakokompressora, which limits its use in PA with a diving depth of over 300 m.

Known and Daewoo working on ZTS, in which the removal of combustion products is carried out by dissolving them in water overboard. This power plant is more economical, but has considerable weight and size and is characterized by high energy consumption to drive pumps serving this Daewoo (power plants with diesel submarines closed cycle. Shipbuilding abroad 1991, N 12, fig. On p.62) .

Known and DEU PA working on ZTS comprising an internal combustion engine, the automatic control system, the intake system to the mixing chamber and a heater with cavities intake and exhaust gas exhaust system with a cooler having an oil separation device, fuel and water, and the recirculation control valve storage and feed store cryogenic oxidizer tank system oxidizer flue system comprising compressor inlet and outlet, gas refrigerant of the compressor, the condenser of the first stage with the cavities of combustion products and cooling, a separator with the cavities of gas and combustion products, the absorption chiller , the capacity for storage of liquid carbon dioxide and heat-insulated pipes with fittings include automatic valves (Diesel installation submersibles. Shipbuilding 1982, N 7, fig. 4, p. 21). This setting is taken as a prototype.

The object of the invention is to obtain a technical result consists in increasing the efficiency and reducing the weight and size characteristics of the DEU.

For this known DEU PA operated in a closed cycle, with recirculation combustion gases, and removing the CO ₂ via evakokompressora and subsequent liquefaction of the carbon dioxide in the storage system and the oxidant additionally introduced cryopump, the capacitor of the second stage with cavities oxygen and combustion products, freezer cavities coolant and combustion products and apparatus decompression, in the flue gas is further introduced ice maker having an inner cavity and a gas jacket airlock with overlapping inlet and outlet conduits for solid products of combustion and the seawater and the suction pump, the inlet system additionally introduced a low molecular weight gas storage capacity, such as argon, and the storage capacity of the liquid oxidizer through sequentially interconnected pipe cryopump, an oxygen chamber of the condenser of the second stage, a pressure reducing device, the cooling cavity condenser of the first stage and the freezer is connected to the mixing chamber, a storage tank low molecular weight gas is connected to the mixing chamber pipe with an automatic valve, the input of the compressor via the gas space of the freezer is connected to the recirculation valve adjustment, the input channel for combustion products lock chamber via series connected pipeline inner cavity of the ice maker, the cavity of the separator combustion cavity capacitors combustion products of the first and second stages, gas refrigerant of the compressor is connected to the compressor outlet, a gas jacket icemaker connected pipe with an automatic valve to the compressor input, the gas chamber of the separator is connected to the pipeline oxidant storage and delivery system in the area between the capacitor of the first stage and a freezer, the oil separation device, fuel and water coolant gas exhaust system, a gas cavity of the freezer and an outlet lock chamber for seawater pipes with non-return valves are connected in parallel to the bilge pump, automatic valves control connections are connected to the automatic control system, and the airlock through the outlet channel for the products of combustion and the input channel seawater connected to the outboard space.

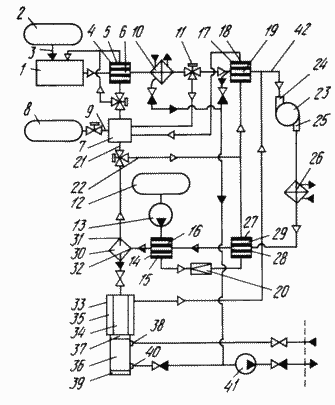

Brief Description of the drawing, which shows a schematic diagram DEU ZTS removing combustion products overboard as a solid.

ZTS DEU includes the following basic equipment:

• internal combustion engine 1;

  • system:

    • with fuel supply tanks and the pipeline 2 3;

    • inlet, heater comprising inlet 4 with cavities 5 and 6, the exhaust gases, a mixing chamber 7, 8 of storage container of low molecular weight gas, the conduit 9 with an automatic valve;

    • a gas exhaust cooler 10 provided with an oil separation device, fuel and water recirculation regulating valve 11;

    • Storage and supply of oxidant containing cryogenic vessel 12 storing oxidant cryopump 13, the capacitor 14 of the second stage with cavities oxygen 15 and combustion gases 16, freezer 17, with cavities of cooling 18 and the combustion products 19, the unit 20 the decompression and piping 21 and 22;

    • removing the products of combustion, including the compressor 23 with inlet 24 and outlet 25, a cooler 26, gas of the compressor, the condenser 27 of the first stage with the cavities of cooling 28 and the combustion products 29, the separator 30 with cavities gas 31 and combustion products 32, ice maker 33 having an internal cavity 34 and the gas jacket 35, the lock chamber 36 with overlapping input channels for solid combustion products 37 and the seawater 38 and output channels for the solid combustion products 39 and the seawater 40, suction pump 41, line 42.

Container 12 storing oxidant through sequentially interconnected pipeline cryogenic pump 13, oxygen chamber 15 of the condenser 14, a second stage pressure reducing device 20, the cooling chamber 28, the capacitor 27 of the first stage and the cooling chamber 18 of the freezer 17 is connected to the mixing chamber 7, a storage capacity of 8 low molecular gas is connected to the mixing chamber 7 a conduit 9 with an automatic valve inlet 24 of the compressor 23 via the gas chamber 19 of the freezer 17 is connected to the valve 11, the recirculation regulation inlet channel 37 for combustion air-lock chamber via series connected pipeline inner cavity 34 of the ice maker 33, the cavity 32 products combustion of the separator 30, the cavities 16 and 29, the combustion products of capacitors 14 and 27 of the second and the first stages 26, gas refrigerant of the compressor is connected to the output 25 of the compressor 23, a gas jacket 35 icemaker 33 connected pipe with an automatic valve to a conduit 42, gas chamber 31, the separator 30 parallel connected to the pipes 21 and 22, the oil separation device, fuel and water cooler 10, gas chamber 19 of the freezer 17 and an outlet 40 of the sluice chamber 36, conduits with non-return valves are connected in parallel to the discharge pump 41, automatic valve control links are connected to the automatic control system and the airlock through the outlet channel for the products of combustion and the input channel seawater connected to outboard space.

Inclusion in the power plant proposed cryogenic equipment (cryopump, the second condenser stage pressure reducing device, a freezer, etc.), and a cavity connecting the capacitor of the second stage combustion products to the flue system, allow, by comparison with the prototype, a efficient use of the low temperature oxidation of energy that enables the elimination from the refrigeration unit PP, reduce the power requirement of the compressor to drive the flue system.

Introduction to the ED of the lock chamber and the ice maker and their connection to the flue system, allows to remove the internal combustion engine combustion products overboard and thus excluded from the PP strong capacity for storage of liquid CO _2.

Using EI ZTS low molecular gas can improve the thermodynamic properties of the working fluid in a diesel engine (to reduce heat capacity), thereby improving fuel economy.

EI works as follows

Working mixture was transferred to an absorption in the diesel engine 1, is formed in the mixing chamber 7 and is composed of an oxidant (oxygen), low molecular weight gas and combustion products. Oxidizer enters the mixing chamber (IC) 12 from the tank 7 storing oxidant previously passed capacitors 14 and 27, a pressure reducing device 20 and the freezer 17. The low molecular weight gas in the IC is supplied from tank 7 via conduit 8, 9, and the exhaust gases (RG) coming 7 in the UK from the gas exhaust system. Diesel fuel is fed in from the tank 1 through line 2 3.

Exhaust gases produced during the combustion process in the cylinders of the diesel engine 1 comes into a cavity 6 preheater 4, where they are cooled in the heat exchange with the working mixture flowing to the suction of the engine 1 through the cavity 5 of the heater. The resulting mixture is increased to boost the temperature of the temperature. Then sent to the SH convection cooler 10, they contain water vapor is condensed and removed the pump 41 over the side, the separated oil and fuel enter the settling tank. As cooling medium used in cooler 10 Outside water from the engine cooling system. Then separation WG recirculation regulating valve 11 is performed in such a way that formed in the combustion gas part enters the cavity 19 of the freezer 17 and the remainder in IC 7. The freezer 17 is further cooled condensate and freeze SH residues. Refrigerant cooling gas is supplied to the freezer chamber 18 from the tank 12, after having passed the capacitors 14 and 27. In operation, the installation occurs plugging cavity 19 of the freezer 17 the ice formed from the condensate, so to function settings freezer 17 holds a two-piece. In the process of the formation of ice in the first section of the second is its defrost, and formed water is removed pump 41 overboard. 17 from the freezer gases enter the duct 42 where there is a mixture of CO ₂ gas formed in the jacket 35 of the ice maker 33, and additional cooling.

For preparing solid combustion products must have a maximum density of the liquid CO ₂ phase. The existence of the liquid phase is possible only at pressures above the critical 5.3 atm, so the compressor 23 the gas pressure increases to 6 ata. Then the gases are fed to a cooler 26, in which a cooling medium is used seawater from the cooling system of a diesel engine. From cooler 26 the gas mixture is sent to the condensers 27 and 14, which by heat exchange with oxygen is first cooled to a CO ₂ condensation temperature of -50 ^{o C,} the pressure of 6 ata Corresponding then condense carbon dioxide. The resulting two-phase medium is sent to a separator 30 where the carried phase separation, then liquid carbon dioxide is poured into the inner cavity 34, the icemaker 33, and the gas phase consisting of oxygen and low-molecular gas enters the mixing chamber 7 through the conduit 21 and further to the composition of the working fluid at absorption in one or diesel as a refrigerant is directed through conduit 22 to the cooling chamber 18 of the freezer 17.

Oxygen tank 12 is stored in liquid state in pressurized January 5 ata and with a temperature of 50 100 K. The cryogenic pump 13, it is fed under a pressure of 30 to 40 atmospheres oxygen in the cavity 15 of the second stage of the condenser 14. In the condenser 14 in heat exchange with the condensing liquid CO ₂ oxygen is vaporized and heated to a dew point of carbon dioxide to minus 50 ^o C. Then, the decompression device 20 expands the refrigerant, while the pressure is reduced to the boost pressure, and the temperature is reduced to 115 ^o C.

From device 20 downward pressure oxygen is supplied into the cavity 28 of the condenser 27, in which the cooling of the SH and the beginning of _the CO ₂ condensation. The refrigerant is then directed into the cavity 18 of the freezer 17, from which the IC enters the part 7 and the working medium is supplied to a diesel engine 1 absorption.

In the inner cavity 34 of the ice maker 33 during downward fluid pressure below the critical value, the liquid phase CO ₂ is separated into a solid (dry ice) and gaseous. The gaseous carbon dioxide through a gas jacket 35 flows into conduit 42.

After completing the crystallization process, the CO ₂ dry ice briquette enters the airlock chamber 36 via the inlet channel 37, then channel 37 is blocked and the chamber 36 is sealed, then through the channel 38 into the lock chamber 36 is supplied seawater. After pressure equalization in the outboard chamber 39 is opened outlet channel and the preform of dry ice under the action of gravity is removed overboard. Then, the channels 38 and 39 are closed and the airlock 36 through the channel 40 is drained pump 41.

Calculations for PA with underwater autonomy of 72 hours and PP containing DW 50 kW shows that by excluding from the EC refrigeration unit, durable storage tanks for liquid CO _2, but also the removal of the resulting combustion products overboard possible to improve the weight and size characteristics of the power plant about 40 while increasing efficiency of the plant from 22 to 37 due to the improvement in the workflow combustion engine operating on a mixture comprising a low molecular weight gas, reducing the power required to drive the compressor flue system and exceptions to the drive power loss of the refrigeration unit.

CLAIM

The diesel power plant underwater vehicle comprising an internal combustion engine, the automatic control system, the intake system with heater cavities intake and exhaust gases and the mixing chamber, a system of gas exhaust valve regulate recirculation and cooling provided with an oil separation device, fuel and water storage and an oxidant supply cryogenic storage capacity oxidizer flue system comprising compressor inlet and outlet, gas refrigerant of the compressor, the first stage capacitor cavities combustion and cooling, a separator with the cavities of gas and combustion products and heat-insulated pipelines with valves, comprising automatic valves, characterized in that the storage and supply of oxidant additionally introduced cryopump, the capacitor of the second stage with cavities oxygen and combustion products, the freezer cavities coolant and the combustion products and the pressure reduction device in the flue system additionally introduced icemaker having an internal cavity and a gas jacket airlock with overlapping inlet and outlet conduits for solid products of combustion and the seawater and the suction pump, the inlet system is further introduced a low molecular weight gas storage capacity, such as argon, and the storage capacity of the liquid oxidizer through sequentially interconnected pipeline cryogenic pump, an oxygen chamber of the condenser of the second stage, a pressure reducing device, the cooling cavities of the capacitor of the first stage and the freezer is connected to the mixing chamber, the low molecular weight gas storage tank connected to the conduit of the mixing chamber with an automatic valve, the compressor input through the gas space of the freezer is connected to the recirculation valve adjustment input channel for combustion airlock through the series-connected pipe internal cavity of the ice maker product, the cavity of the separator of the combustion products, oral products of combustion of the capacitor of the second and the first steps, gas cooling behind the compressor is connected to the compressor, gas-shirt ice maker is connected by pipeline with automatic valve to the compressor inlet gas the cavity of the separator is connected to the pipeline oxidant storage and supply system in the area between the condenser of the first stage and freezer, oil separation device, fuel and water gas exhaust system cooler, a gas cavity of the freezer and an outlet lock chamber for seawater pipes with non-return valves are connected in parallel to the discharge pump , automatic valves control connections are connected to the automatic control system, and the airlock through the outlet channel for the products of combustion and the input channel seawater connected to outboard space.
