INVENTION
Patent of the Russian Federation RU2287694
ROTARY INTERNAL COMBUSTION ENGINE
Applicant's name: Boev Igor Vasilievich (RU)
The name of the inventor: Boev Igor Vasilievich (RU)
The name of the patent holder: Boev Igor Vasilievich (RU)
Address for correspondence: 400066, Volgograd, ul. Communist, 10, ap. 73, I.V. Fighting
Date of commencement of the patent: 2005.03.23
The invention relates to the field of rotary engines. The technical result is a simplification of the design, increase of manufacturability of manufacturing of units and parts, maintainability and reliability. The essence of the invention consists in that the engine comprises a housing with control channels for locking mechanisms with pushers and stoppers, housing caps with bearing supports in which a cylindrical rotor with inlet windows is mounted. With the profiled surface of the rotor, the baffle plates with seals are installed on shafts with synchronizing segments in the valve bodies, on which the camshafts with driven pulleys, cams for controlling the movement of the valve-partitions and the control cams of the intake valves are fixed in the bearing supports. The engine is equipped with damping devices with damping springs.
DESCRIPTION OF THE INVENTION
The invention relates to engine building, in particular to rotary internal combustion engines.
A rotary internal combustion engine is known, comprising a housing with a working chamber formed by two intersecting cylindrical cavities, inside which there are two parallel shafts, driven and driven, connected to synchronizing gear gearing and provided with mutually conjugated rotors, a compressor chamber that repeats the shape of a working chamber whose rotors Are installed coaxially with the motor rotors, above which the receiver with a suction and return valve is located and a collector in whose cavity a reset valve is installed, a fuel evaporator located under the exhaust manifold of the working chamber, and an air duct enveloping the side surface of the housing, while the rotors are of the same profile with Two and more blades, and gaps are made between the blades and the blades and engine casing (see description of the invention for RF patent No. 2122688, IPC F 02 B 55/00, publication 20.09.1999) .
The disadvantage of this known rotary engine is the difficulty of making the seal between the body and the rotors.
Known is a rotary internal combustion engine comprising a fixed housing with two stators, a central shaft mounted in the housing, rigidly fixed rotors on the shaft and two pairs of pistons arranged in pairs in respective stators to form annular compressor and working chambers connected together by a receiver, One of the pistons of the compressor chamber is rigidly connected to one of the pistons of the working chamber, and the other piston of the compressor chamber is fixed on the central shaft; in the stator of the compressor chamber, inlet and bypass channels are made, and in the stator of the working chamber there are bypass and outlet channels; synchronization mechanism of movement of the pistons, two hollow coaxial shaft, the inner hollow shaft positioned coaxially to the central shaft and the outside - on the internal interconnected pistons of the compressor and operating the annular chambers placed on the inner shaft and the other piston of the working chamber is connected with an outer hollow shaft , all channels are configured to overlap the outer surface of the piston (see. the description of the invention to the Copyright certificate the USSR №1449681, IPC F 02 B 55/00, published 07.01.1989, the).
The disadvantage of this famous rotary engine adopted for the prototype is the complexity of the design, the lack of maintainability.
The aim of the claimed invention is to simplify the design of the rotary engine.
The essence of the claimed invention consists in that the rotary internal combustion engine comprises a housing with an inlet manifold, compressed air injection channels, check valves, fuel supply nozzles, bypass channels, inlet valves with return springs and rockers, exhaust manifolds, control channels for locking mechanisms with pushers And stoppers, housing caps with bearing supports in which a cylindrical rotor with inlet ports is installed, with a camshaft drive pulley, air-blast blades, blades with seals on the ridges along the edges of which seal rings are fitted in the grooves, septum valves with seals, Coupled with the profiled surface of the rotor, mounted on shafts with synchronizing segments in the valve bodies, on which the camshafts with driven pulleys are fixed in the bearing supports, with cams for controlling the movement of the valve-partitions and with the control cams of the inlet valves, the casing of the damping devices with damping springs, Springs, pistons, check valves, seals, bypass channels.
The essence of the invention is explained by the drawings, wherein:

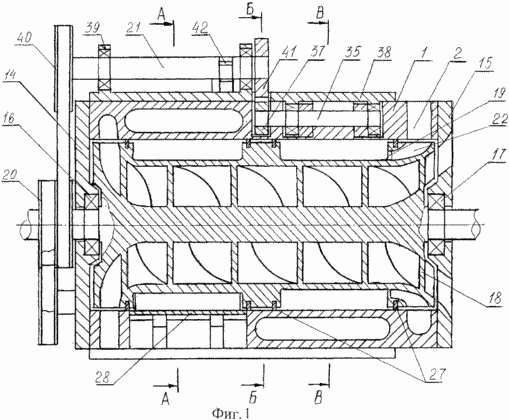

1 shows a rotary engine, a general view in longitudinal section

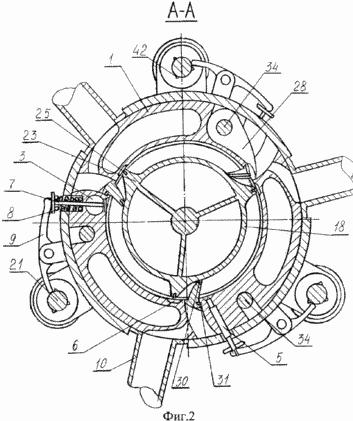

Fig. 2 is a cross-section AA

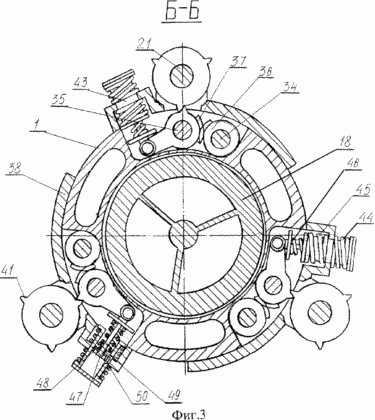

FIG. 3 is a cross-sectional view of B-B

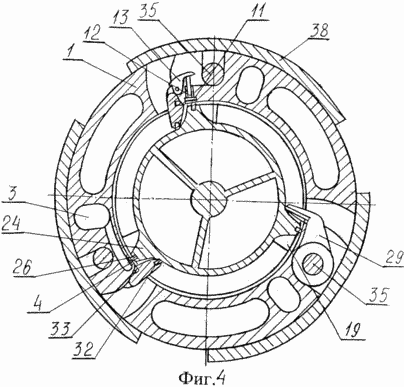

FIG. 4 is a cross-sectional view of the B-B
The rotary engine comprises a housing 1 with an intake manifold 2, compressed air injection channels 3, check valves 4, fuel feed nozzles 5, bypass channels 6, intake valves 7 with return springs 8 and rockers 9, exhaust manifolds 10, stopper control channels 11 with Pushers 12 and stoppers 13, housing covers 14, 15 with bearing supports 16, 17 in which a cylindrical rotor 18 with inlet ports 19 is installed, with pulley 20 of drive of camshafts 21, with air pressure blades 22, blades 23, 24 with seals 25 , 26 on the ridges, along the edges of which in the grooves are installed sealing rings 27, the partitioning valves 28, 29 with seals 30, 31, 32, 33, conjugated to the profiled surface of the rotor 18, mounted on the shafts 34, 35 with synchronizing segments 36, 37 In the valve bodies 38, on which the camshafts 21 with the driven pulleys 40, with the cams 41 for controlling the movement of the partition valves 28, 29 and the control valves 42 for the intake valves 7, the casing for the damping devices 43 with the damping springs 44, 45 , Return springs 46, pistons 47, check valves 48, seals 49, bypass passages 50.
The rotary engine works as follows. As the rotor 18 rotates in the bearing supports 16, 17 of the covers 14, 15 through the intake manifold 2 by the air pressure blades 22 through the intake ports 19 in the cavities formed by the profiled surface of the rotor 18 with sealing rings 27, body 1, blades 23 with seals 25, Partitions 28 with seals 30, 31, air enters. Intake Cycle. In adjacent cavities formed by the same surfaces, air is compressed and displaced through check valves 4 into the compressed air injection channels. 3. Compression cycle. As the blades 23 of the stopper control channels 11 pass, the pushers 12 cease to hold the partition valves 28 in the closed position via the rocker arms 13. Due to the residual exhaust gas pressure, and by the action of the cams 41 of the camshafts 21 on the synchronizing segments 36, 37, the shafts 34, 35 rotate in the valve bodies 38 with the partition valves 28, 29, moving them to the "open" position, To the blades 23, 24. When the valve valves 28, 29 are moved to the "open" position, the pressure on both sides of the pistons 47 remains the same due to the opening of the check valves 48. The energy of the movement of the partition valves 28, 29 is extinguished by compressing the damping springs 44. After The passage of the blades 23, 24, under the influence of the return springs 46, the damping springs 44, the baffles 28, 29 return to the "closed" position. In the "closed" position, the partition valves 28 are held by the stoppers 13 of the locking mechanisms, which are controlled by the pushers 12, depending on the pressure of the compressed air. The damping of the energy of the movement of the casing 43 of the damping devices occurs by the compression of the damping springs 45. The braking of the partition walls 28, 29 is effected by compressing the gas by the pistons 47 in the housings 43 with seals 49 of the damping devices. At the end of the movement, the gas pressure on both sides of the pistons 47 is equalized by the bypass channels 50. The rotation of the camshafts 21 in the bearing bearings 39 occurs by means of a belt transmission of the torque from the drive pulley 20 to the driven pulleys 40. At the same time, as the blades 24 of the intake valves 7, the latter are opened by the action of the cams 42 of the camshafts 21 through the rocker arms 9. The compressed air starts to flow from the compressed air injection channels 3 into the cavities formed by the profiled surface of the rotor 18 with sealing rings 27, body 1, blades 24 with seals 26, With seals 32, 33. When the volume of the above-mentioned cavities is equal to the volume of the combustion chamber, the intake valves 7 are closed by the springs 8 and the fuel is supplied through the nozzles 5. Start of the stroke cycle. When approaching the blades 24 to the valves, the partitions 29 by passageways 6, the pressure equalization on both sides of the valves, baffles 29, due to the residual exhaust gas pressure, but also by the action of the cam 41 of the camshaft 21, there is a moving valves, baffles 28, 29, "open" position, freeing the passage of the blades 23, 24 and releasing the exhaust gases in the exhaust manifold 10. The end of the stroke cycle and the beginning of the release cycle. After passing the blades 23, 24, under the influence of the damping springs 44 and the return springs 46, the baffles 28, 29 return to the "closed" position. The remaining exhaust gases are displaced by the blades 24 through the gaps between the body 1 and the baffles 29 into the exhaust manifolds 10. The end of the exhaust cycle.
The implementation of the invention will simplify the design of the engine, improve the manufacturability of manufacturing units and parts, maintainability and reliability.
CLAIM
A rotary internal combustion engine comprising a housing with an intake manifold, compressed air injection channels, check valves, fuel injectors, bypass passages, intake valves, return springs and rockers, exhaust manifold, stopper control channels with pushers and stoppers, housing covers with Bearing supports in which a cylindrical rotor with inlet windows is installed, with a pulley for driving the camshafts, with air injection blades, blades with seals on the ridges at the edges of which grooves are fitted in the grooves, septum valves sealed to the profiled rotor surface, Shafts with synchronizing segments in the valve bodies on which the camshafts with the driven pulleys are fixed in the bearing supports, with the cams for controlling the movement of the partition valves and with the control cams of the inlet valves, the casing of the damping devices with damping springs, return springs, pistons, check valves , Seals, bypass channels.
