INVENTION
Russian Federation Patent RU2130686
Rotator uses energy PERMANENT MAGNETS

Name of applicant: Vatolin Eugene Stepanovich
Name of the inventor: Eugene Stepanovich Vatolin
The name of the patentee: Vatolin Eugene Stepanovich
Address for correspondence: 111395, Moscow, Krasnaya Kazanets 3-1-186, Vatolin ES
Starting date of the patent: 1997.12.15

The use - as a rotary drive. The rotator includes a stator, the permanent magnets which are movably mounted and biased outwardly like poles. Permanent magnet rotor mounted on its outer side with both poles of the magnets towards the stator. Permanent magnets annular rocker-like poles of the flywheel installed inward toward the stator poles of the same name and are located on the outside around the stator. The interaction of the magnets of the stator, rotor and the annular rocker occurs rotor-flywheel rotation about its axis within the stator. The technical result is to reduce the resistance to rotation of the rotor. The forces affecting the rotation of the rotor eliminates rocker flywheel.

DESCRIPTION OF THE INVENTION

The invention relates to mechanical engineering and can be used in other sectors of the economy.

A device / 1 / - drive comprising a stator, permanent magnets whose like poles are installed inside the rotor, which permanent magnets are installed on the outer side of both poles, axle and bearings.

A disadvantage of the known device is lack of power.

The invention aims to increase the power devices by reducing the resistance to rotation of the rotor.

This object is achieved in that the rotator consists of a double stator, the permanent magnets which are spring-loaded and movably mounted outside the same polarity, dual rotor permanent magnets which are mounted on the outer side of both poles towards the magnets of the stator, and an annular reel-flywheel, permanent magnets which are installed like poles toward the inside of the stator poles of the same name and located on the outside around the stator.

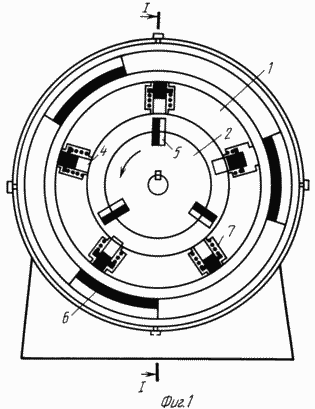

FIG. 1 is a rotator, longitudinal section

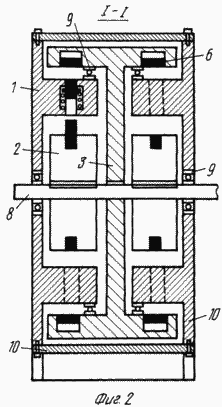

FIG. 2 the same side view

The rotator comprises a double stator - 1, twin rotor 2 which is fixedly connected with the axis 8, an annular reel flywheel 3 and rigidly connected to the shaft 8, the permanent magnets double stator 4, the permanent magnets of the rotor 5, the permanent magnets reel-flywheel 6, the springs permanent magnets 7, shaft 86, bearing housing 9, and 10.

Spanner WORKS AS FOLLOWS

Permanent magnets mounted in the rotor and the stator unlike poles are attracted to each other, resulting in the rotation of the rotor at a certain angle. At the moment when the rotor magnet enters into action stator magnet area, the rocker-flywheel magnet come to the same name magnet stator and repel the latter in the stator body, whereby the spring 8 is compressed and the opposite end of the magnet stator go beyond the stator inside and will attract opposite magnet rotor. There will be a rotation of the rotor at a certain angle. Upon further rotation of the rotor magnet rocker-flywheel passes the stator magnet and the latter under the action of the spring 8 moves to the top of the stator and the rotor magnet will free the way. Then there is an interaction of the following three permanent magnets / stator rocker-flywheel rotor / arranged circumferentially in the direction of rotation / in one / magnet rocker-flywheel again be pushed into the stator magnet again occur interaction stator magnets and rotor, the latter again rotates by a certain angle, and then the stator magnet moves inside the stator, and so on with the following cycle is repeated magnets.

Thus there is a continuous rotation of the rotor about its axis within the stator.

The operating principle of both the stator and rotor similar.

magnets Pole shaded blackening.

INFORMATION SOURCES

1. Patent RF N 20199016, H 02 N, 1994

CLAIM

The rotator consisting of the stator, the permanent magnets which are installed inside the same poles of the rotor, the permanent magnets which are mounted on the outer side of both poles, shafts and bearings, characterized in that the permanent stator magnets are provided with springs and are mounted adjustably and on the outside around stator taken rigidly associated with the rotor axis an annular yoke flywheel permanent magnet that like poles of the same polarity facing towards the stator magnets like poles so that when the input of the rotor magnet in the stator magnet coverage area of ​​the rocker-flywheel magnet repel it into stator body , compressing the spring and bringing it to the attraction to opposite poles of the rotor magnet.
