INVENTION
Patent of the Russian Federation RU2211950
UNPRESSED WIND-HEAVY
The name of the inventor: Alexander Kirsanov; Kirsanov Denis Alexandrovich
The name of the patent holder: Alexander Kirsanov; Kirsanov Denis Alexandrovich
Address for correspondence: 432072, Ulyanovsk, pr-t Ulyanovsk, 18, sq. 364, E.V. Zhdanov
The effective date of the patent: 2001.11.06
The invention relates to wind energy and can be used in automobile, aircraft, yacht, helicopter and other industries. The technical result, which consists in the increase of wind flows due to the presence of a reverse-return wind wind system and the possibility of operating the unit at low wind speed, is achieved due to the fact that a gearless wind turbine comprising a magnetoelectric generator with a rotor and a circular stator and a support for securing the wind turbine , According to the invention, comprises a flow conditioner of four identical shells having a recess on the face of each shell tapering to the center and forming a closed contour along the perimeter of the mating lateral sides, in the left upper and lower right corners of the shell, return air return channels are mounted, The curved blades on the axial straight part of which the excitation coils are fixed, the stator contains not less than eight diffusers, not less than sixteen magnetic plates, the generator is mounted vertically, is made up, the first stage is inside the interfaced four shells, the second upper stage in the cavity between the roof And the upper back surface of the shells, the third in the cavity between the support and the lower back surface of the shells, the wind turbine has sixteen valves with flaps and chambers, on each face of the shells there are two equally located valves, the first in the lower left corner opposite the opening of the return return channel Air flow, the second in the upper right-hand corner of the channel, and there are four valves in the cavity between the roof of the wind turbine and the upper rear surface of the shells, smoothly interfaced with the internal cavity of the upper return flow channels; between the support and the lower rear surface of the shells, four valves are conjugated to Internal cavity of the lower return flow return channels.
DESCRIPTION OF THE INVENTION
The invention relates to power engineering and can be used in everyday life in heating and lighting of apartments, automobiles, aircraft construction, yacht building, transport, helicopter building and other branches of engineering.
The closest prior art analogue to the claimed invention, a prototype, may be the invention of a "Direct-drive wind turbine comprising a magnetoelectric generator with a rotor and a circular stator and a support for securing the wind turbine" (SU 861715, class F 03 D 1/00, application 2762834/25 -06 from 07/05/1979 authors Kopylova IP, Lyadovoy TV, applicant Moscow Order of Lenin Power Institute, published on 07.09.81 in Bulletin 33).
A disadvantage of this invention is the need for a large wind, at least 5 m / sec, so that the gearless wind turbine will operate, and its lower operational capability compared to the claimed invention.
The technical result of the claimed invention is the possibility of operating the unit at a low wind speed V = 1 m / sec, by collecting counterpropagating flows into a single point in the bundle in the shells, and the possibility to strengthen the wind currents by the presence of a reverse wind turbine in the gearless wind turbine. It is achieved by the fact that, in comparison with the invention adopted for the prototype "Direct drive wind generator", containing a magnetoelectric generator with a rotor and a circular stator and a support for attaching the wind turbine, the claimed gearless wind turbine comprises a flow conditioner made in the form of four identical shells each on the front side of each Shells are a depression, tapering with a slope to the center, and forming a closed contour along the perimeter of the side edges interconnected. In the left upper and lower right corners, on the front side of each shell, equally located return air return channels are mounted, with curved blades on the shaft of said rotor, at least not less than six, on the axial straight part of which the excitation coils are fixed, and said The circular stator comprises at least no less than eight diffusers, at least sixteen magnetic plates fixed two in each diffuser, said magnetoelectric generator being mounted vertically and being made up of individual, sequentially installed stages of at least three or more including The first step is the middle stage of the magnetoelectric generator located inside said four interconnected arms, the second upper stage being located in the cavity between the roof of the wind turbine and the upper rear surface of the shells, and the third lower stage is located in the cavity between the support and The lower rear surface of the shells, the wind turbine has at least sixteen valves containing the flaps and chambers, with on each face of all four shells two equally located valves, one of which is located in the lower left corner of the obverse of the shells, opposite to the opening of the said shell The return air return channel mounted in the upper left corner of the front side of the shells and the second valve is located in the upper right corner opposite the opening of the return air return channel mounted in the lower right corner of the front side of the shells. In the cavity between the roof of the wind turbine and the upper The back surface of the shells are made of four valves, smoothly mating with the internal cavity of the upper channels of the return return of the air flow, and in the cavity between the support and the lower rear surface of the shells, four valves are smoothly mated to the interior of the lower channels of the return air flow.
The drawings show:
 |
 |
|||||||
 |
 |
 |
||||||
 |
 |
|||||||
| ||||||||
DETAILED DESCRIPTION OF THE INVENTION

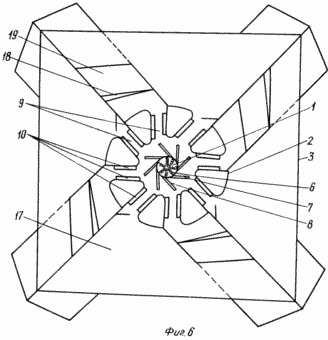

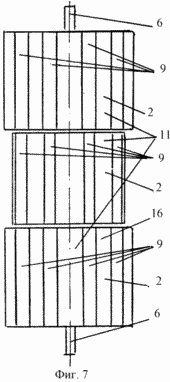

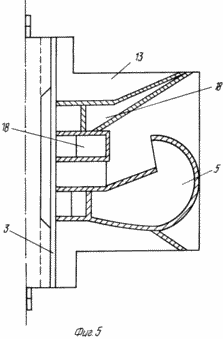

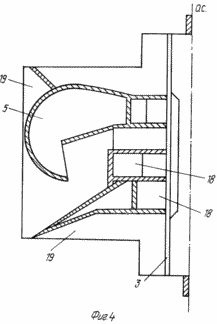

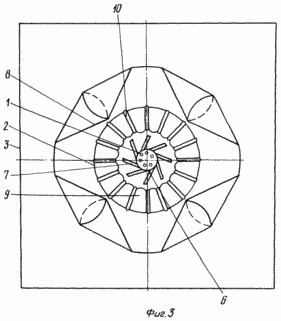

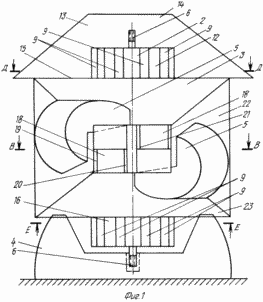

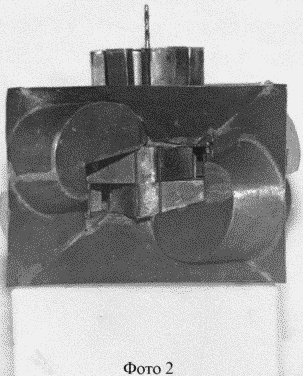

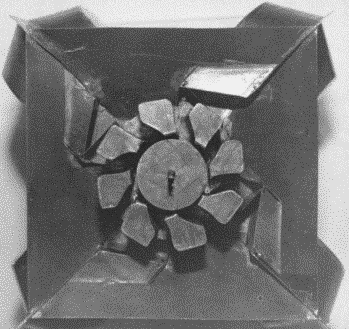

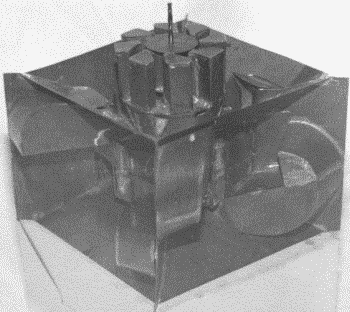

The gearless wind turbine contains a vertically mounted magnetoelectric generator with a rotor 1 (Figs. 2, 3, 6) and a circular stator 2 (Figs. 1, 2, 3, 6, 7) and a flow conditioner made in the form of four identical interconnected shells 3 (Figs. 1-6) having on the front side a recess tapering with a tilt towards the center and configured to concentrate the air flow to the front face of the shells 3 (Figures 1-6) into a bundle. In this case, the shells 3 (Fig. 1-6) form a closed contour along the perimeter, conjugated to each other sides. The shells 3 (FIGS. 1-6) are fixed from below on the support 4 (FIG. 1). In the left upper and lower right corners, on the front side of each shell 3 (FIG. 1) having a recess with a slope to the center, equally located channels 5 (FIGS. 1, 4, 5) of the return return of the air flow are mounted. The rotor 1 (Figures 1, 3, 6) consists of a shaft 6 (Figures 1, 2, 3, 6, 7), in which, depending on the diameter dimensions, six to an equal number of angled blades 7 (Fig. 2, 3, 6). In this case, the excitation coil 8 is fixed on the axial straight part of each blade 7 (Fig. 2, 3, 6) (Fig. 2, 3, 6). And each curved part of the blade 7 (FIG. 2, 3, 6) is made to the axial part of the blade 7 (FIG. 2, 3, 6) at an angle. The circular stator 2 (FIG. 1, 2, 3, 6, 7) comprises at least at least eight diffusers 9 (FIGS. 1, 2, 3, 6, 7) disposed in a circle and serving for passage of air currents. Moreover, the larger the dimensions of the circular stator 2 (Figures 1, 2, 3, 6, 7,), the more the number of diffusers 9 (Figures 1, 2, 3, 6, 7) contains at least not less than sixteen magnetic plates 10 (FIGS. 2, 3, 6) fixed two in each diffuser 9 (FIGS. 1, 2, 3, 6, 7). The magnetoelectric generator is made up of individual, sequentially installed stages, at least three or more, including the stages 11 (FIG. 7) of the rotor 1 (FIGS. 2, 3, 6) and the facilitating stator stages 2 (FIGS. 2, 3, 6, 7), with the possibility of composing the steps of the magnetoelectric generator in a vertical plane, at least three to one number. The stages of the magnetoelectric generator are designed to be installed in a vertical plane, both in the form of separate independent steps, and in the form of dowels secured to each other (not shown in the drawing). The increase or decrease in the number of stages 11 (Fig. 7) in the magnetoelectric generator respectively increases or decreases the rotational speed of the rotor 1 (Fig. 2, 3, 6), its electromotive force, and changes the power of the magnetoelectric generator. With a three-stage magneto-electric generator, the first-middle stage 11 (Figure 7) is located inside four interlocking shells 3 (Fig.1), having a depression inclined toward the center, one of which, depending on the direction of the wind, receives airflow. The second upper stage 12 (FIGS. 1, 7) is located in the cavity 13 (FIG. 1) between the roof 14 (FIG. 1) of the wind turbine and the upper rear surface 15 (FIGS. 1, 2) of the shells 3 (FIGURES 1, 2 ). The third, lower stage 15 (FIG. 1, 7) is located in the cavity 17 between the support 4 (FIG. 1) and the lower back surface 17 (FIG. 6) of the shells 3 (FIG. 6). The wind turbine has at least sixteen valves containing the flaps 18 (Fig. 1-6) of the valves and chamber 19 (Fig. 1-6).
To collect the wind into the beam, two equally located valves are provided on each front front side of all four shells 3 (FIGS. 1-6) of the middle stage 11 (FIG. 1). One valve 20 (FIG. 1) is located in the lower left corner of the front front side of the shells 3 (FIG. 1), opposite the opening of the air return channel 5 (FIG. 1), mounted in the upper left corner of the front front side of the shells 3 (FIG. .1), and the second valve 21 (Figure 1) is located in the upper right-hand corner of the front front side of the shells 3 (FIG. 3), opposite the opening of the return air channel 5 (FIG. 1), mounted in the lower right-hand corner of the front front side Of the shells 3 (FIG. 1).
In the cavity 13 (FIG. 1) of the second upper stage 12 (FIG. 1) of the magnetoelectric generator, four valves 22 are formed between the roof 14 (FIG. 1) of the wind turbine and the upper rear surface 15 (FIG. 2) of the shells 13 (FIG. 2) 2) smoothly mating with the internal cavity of the upper channels 5 (FIG. 1) of the return return of the air flow. In the cavity of the third stage 16 (FIG. 1, 7) of the magnetoelectric generator, between the support 4 (FIG. 1) and the lower rear surface 17 (FIG. 6) of the shells 3 (FIGS. 1-6), four valves 23 (FIG. 6 ), Smoothly conjugated to the internal cavity of the lower channels 5 (FIG. 1) of the return return of the wind flow.
The wind turbine is designed in such a way that the air flow of the wind in each stage returns to its original position and thereby increases the efficiency of the gearless wind turbine in the case of a small wind. The wind turbine works as follows.
The air flow, depending on the direction of the wind, falls on one of the four shells 3, presses on the flaps 18 of the valves 20, 21 in the first middle stage 11 of the magnetoelectric generator and enters the middle valves of the chamber 19, gathering in the beam where the diffusers 9 of the stator 2 First stage 11 of the magnetoelectric generator. Then, the air stream collected in the beam hits the blades 6 of the rotor 1 of the first middle stage 11 and drives it into rotation. In this case, the valve flaps 20, 21 of the first stage 11 of the magnetoelectric generator are open and the return air streams of the first stage 11 open. The remaining flaps 18 of the chamber 19 and the return air return channels 5 of the first middle stage 11 are closed. The air flow, pressing the rotor 1 of the first stage 11 of the magnetoelectric generator, enters the diffusers 9 of the stator 2 of the lower stage 16 and the upper 12 and then falls on the blades 6 of the rotor 1 of the lower 16 and upper 12 stages of the magnetoelectric generator and drives the rotor 1 to the lower upper 12 stages . Simultaneously, the air flow opening the right upper flap 18 and the left lower flap 18 of the first stage 11 through the chambers 19, respectively, enters the lower and upper return air flow channels 5 and intensifies the pressure on the blades 6 of the rotor 1, increasing the speed and allowing the operation of the wind turbine at Wind speed V = 1 m / s, due to the fact that the headwinds are collected in a bundle in the shells 3 and the reverse-return system of return air return channels 5 return to the original direction. By increasing the dimensions and number of steps of the magnetoelectric generator, the wind turbine can achieve the desired power. When the rotor 6 rotates, the excitation coils 8 on the blades 7 interact with the magnetic plates 10 of the stator 2 produce a current and this gives a gearless windmill, i.e., a magnetoelectric generator with a rotor 1 and a stator.
CLAIM
A gearless wind generator comprising a magnetoelectric generator with a rotor and a circular stator and a support for securing the wind farm, characterized in that the wind power unit comprises a flow conditioner formed in the form of four identical shells having a recess on the face side of each shell tapering to the center and forming a closed The contour along the perimeter of the adjacent sides, while in the left upper and lower right corners on the front side of each shell are mounted equally located channels of return return of the air flow, and on the shaft of said rotor, curved blades of at least six, on the axial straight line Parts of which the excitation coils are fixed, and said circular stator comprises at least at least eight diffusers, at least sixteen magnetic plates fixed two in each diffuser, said magnetoelectric generator being mounted vertically and being made up of individual, sequentially installed stages, to At least at least three including the rotor stages and facilitating their stator stages, the first one being the middle stage of the magnetoelectric generator located inside said four intercooled arms, the second upper stage being located in the cavity between the roof of the wind turbine and the upper rear surface of the shells, the third is the lower stage Is located in the cavity between the support and the lower back surface of the shells, the wind turbine has at least sixteen valves containing flaps and chambers, and on each face of all four shells there are two equally located valves, one of which is located in the lower left corner Of the front side of the shells opposite the opening of said return air return channel mounted in the upper left corner of the front side of the shells and the second valve is located in the upper right corner opposite the opening of the return air return channel mounted in the lower right corner of the front side of the shells. In the cavity of the second upper stage of the magnetoelectric generator, between the roof of the wind power unit and the upper rear surface of the shells, four valves are smoothly mated to the inner cavity of the upper return air return channels, and in the third stage of the magnetoelectric generator, four valves are formed between the support and the lower rear surface of the shells, Coupled with the internal cavity of the lower channels of return return of the air flow.
